类型：LCM
显示像素：128x64
外形尺寸(mm) ：52.0x44.2x6.4
VA尺寸(mm)：36.0x23.5
AA尺寸(mm) ：33.25x20.45
视角：6H
背光/亮度：白光
引脚：18PIN
接口方式：MCU
工作温度：-20~70℃
供电电压：3.3v
驱动芯片：ST7567

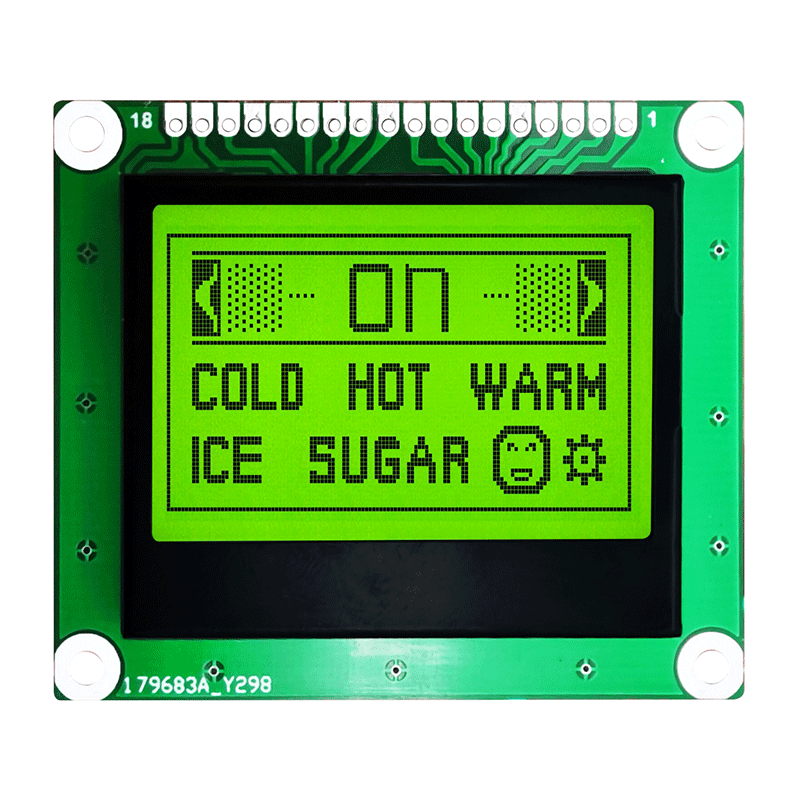

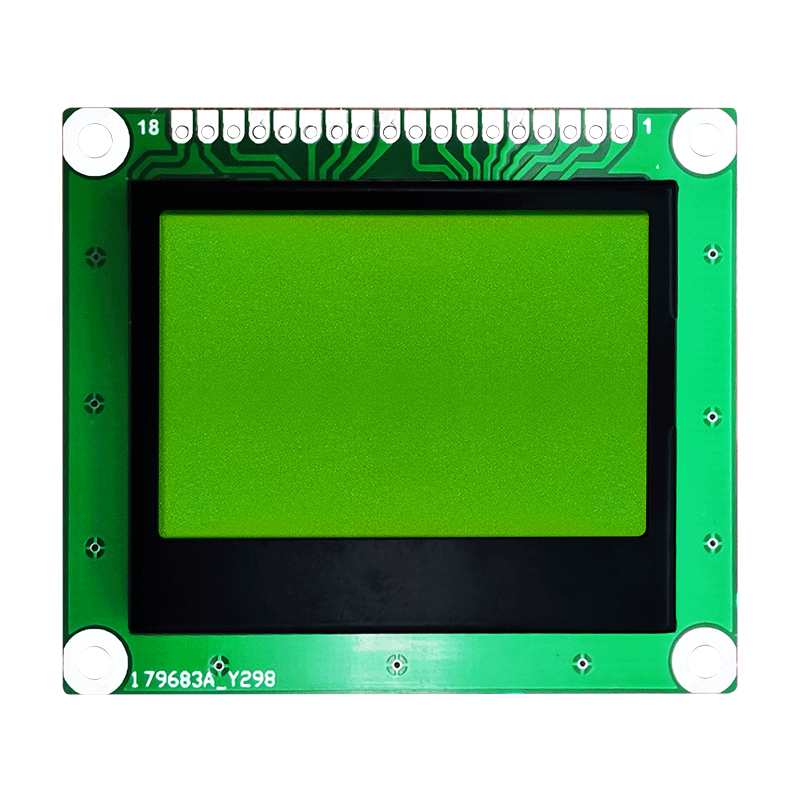

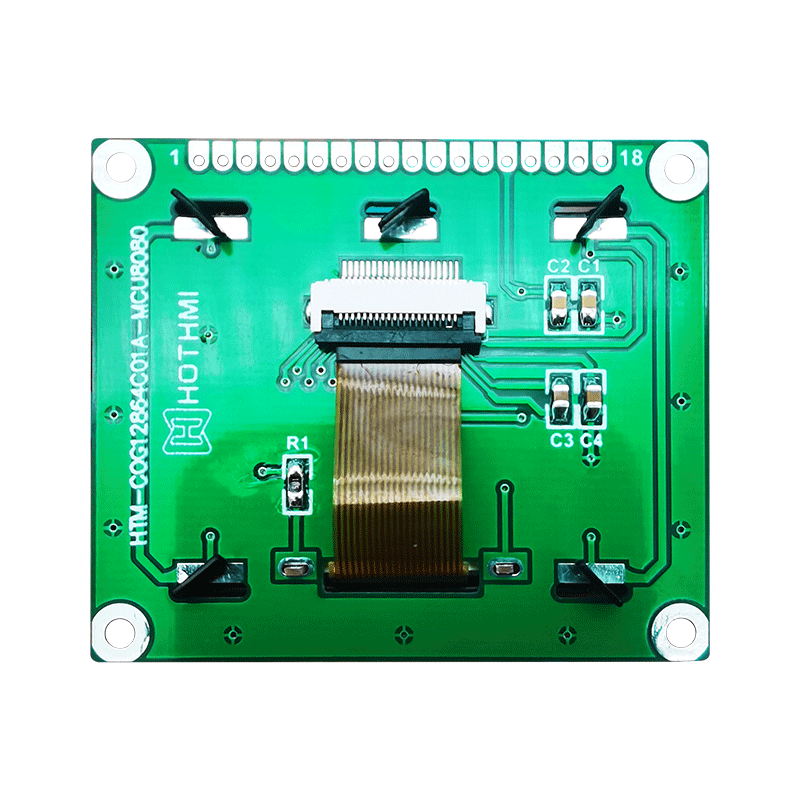

HOTLCD 128x64 图形玻璃上芯片 (COG) 液晶显示器在灰色背景上显示蓝色像素。 这种透反式 LCD 显示屏在环境光或背光下可见，同时提供 -20 至 70 摄氏度的宽工作温度范围。 这款 HTM-COG12864C01A-MCU8080 显示器具有 6:00 的最佳视野，工作电压为 3.3V，符合 RoHS 标准。

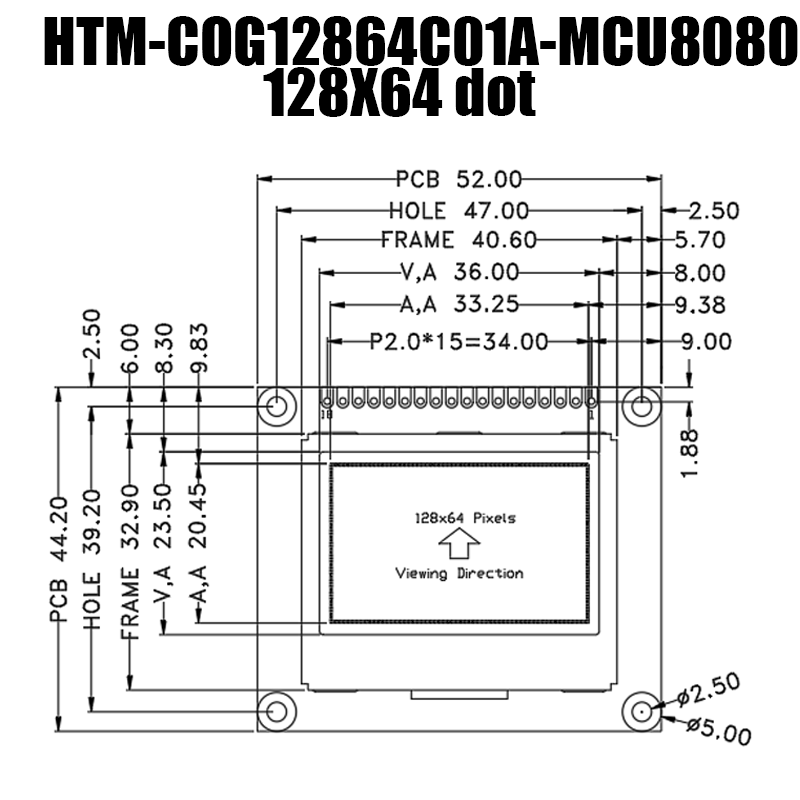

Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 52.0x44.2x6.4 | mm |
| Viewing Area | 36.0x23.5 | mm |
| Mounting Hole | 33.25x20.45 | mm |
| Dot Pitch | 0.32x0.38 | mm |
| Dot Size | 0.28x0.34 | mm |
| Item | Symbol | Standard Value typ. | Unit |
|---|---|---|---|
| Input Voltage | VDD | 3.3 | V |
Absolute Maximum Ratings
| Items | Symbol | MIN. | MAX. | Unit | Condition |
| Supply Voltage | VDD | - | +5.5 | V | VSS = 0V |
| Supply Voltage | VEE | VDD- 16.0 | VDD+0.3 | V | VSS = 0V |
| Driver Supply Voltage | VLCD | VEE-0.3 | VDD+0.3 | V | - |
| Operating Temperature | TOP | -20 | +70 | ℃ | No Condensation |
| Storage Temperature | Tst | -30 | +80 | ℃ | No Condensation |
Electrical Characteristics
| Items | Symbol | MIN. | TYP. | MAX. | Unit | Condition |
| Operating Voltage | VDD | 4.5 | 5.0 | 5.5 | V | VDD |
| Input High Voltage | VIH | 2.0 | - | VDD | V | *1 |
| Input Low Voltage | VIL | 0 | - | 0.8 | V | |
| Output High Voltage | VOH | 2.4 | - | - | V | *2 |
| Output Low Voltage | VOL | - | - | 0.4 | V | |
| Operating Current | IDD1 | - | 2.0 | 3.0 | A | *3 |
| OSC Frequency | FOSC | 315 | 450 | 585 | KHz | Rf=47K±2% |
LED Backlight Circuit
| Items | Symbol | MIN. | TYP. | MAX. | Unit | Condition |
| Forword Voltage | Vf BLA | - | 5.0 | - | V | Without Resister |
| Forword Current | If BLA | - | 60 | 65 | mA | - |
