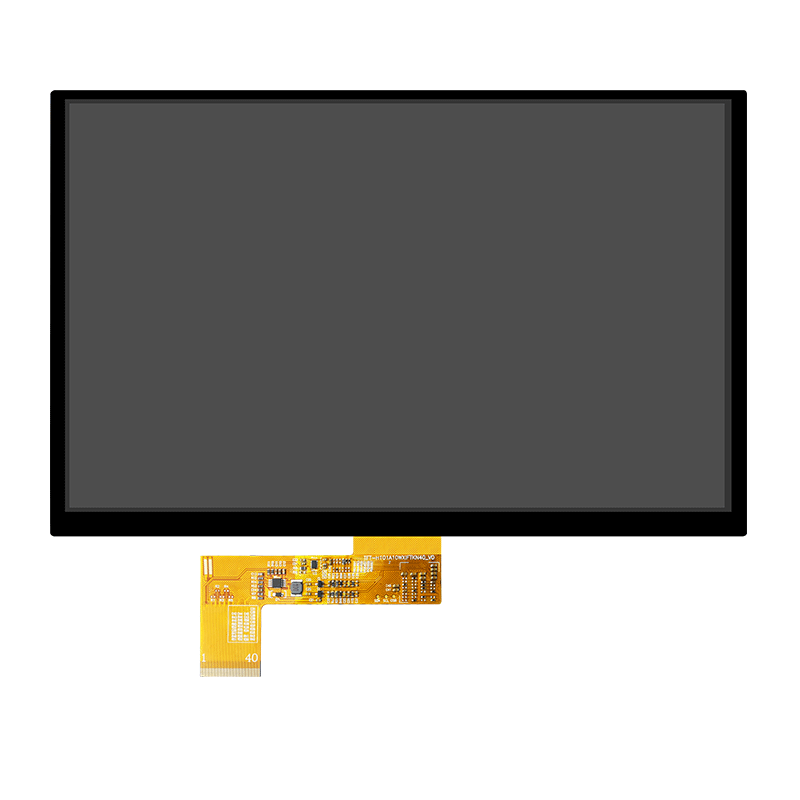

类型：TFT横屏
显示像素：1280x800
外形尺寸(mm) ：229.10x148.90x4.35mm
VA尺寸(mm)：10.1
AA尺寸(mm) ：10.1
有效尺寸mm：216.96x135.60mm
应用：车载，医疗，工控

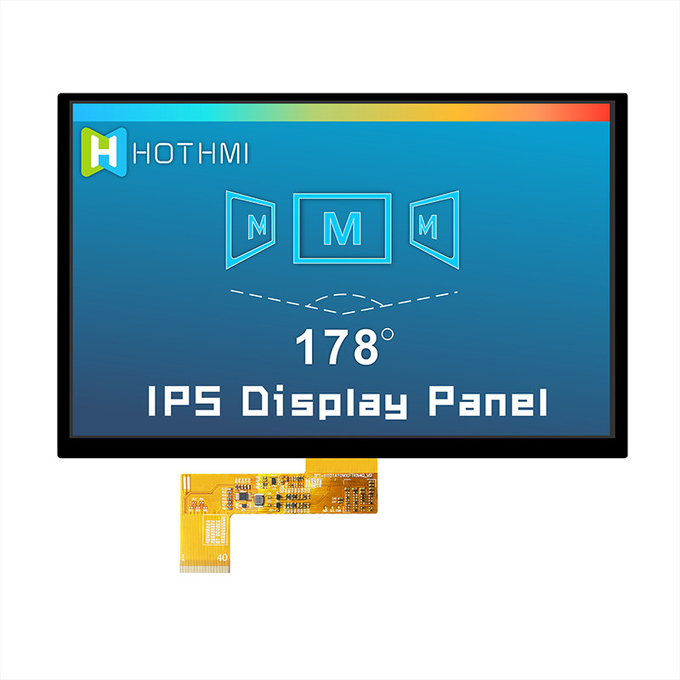

视角：全视角
背光/亮度：1000cd/m2
引脚：40pin
接口方式：LVDS
特殊说明：抗静电ESD 8KV

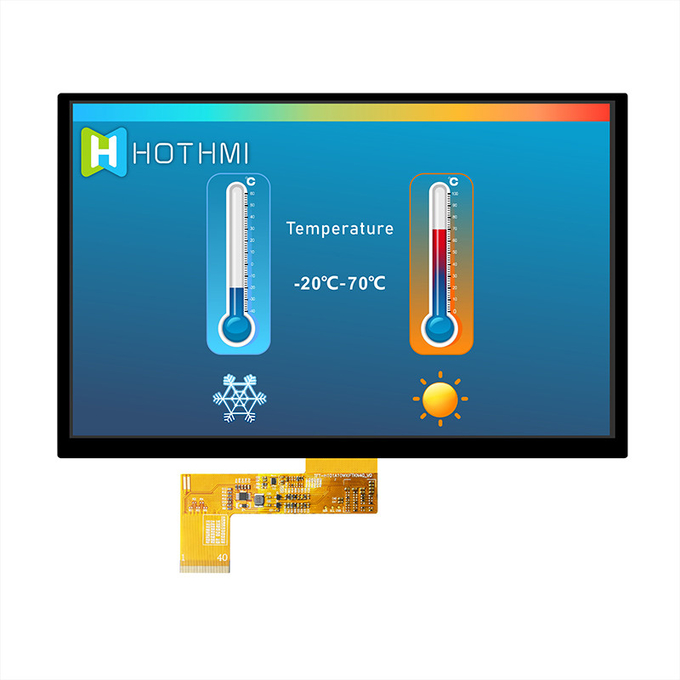

工作温度：-20~70℃
供电电压：3.3V

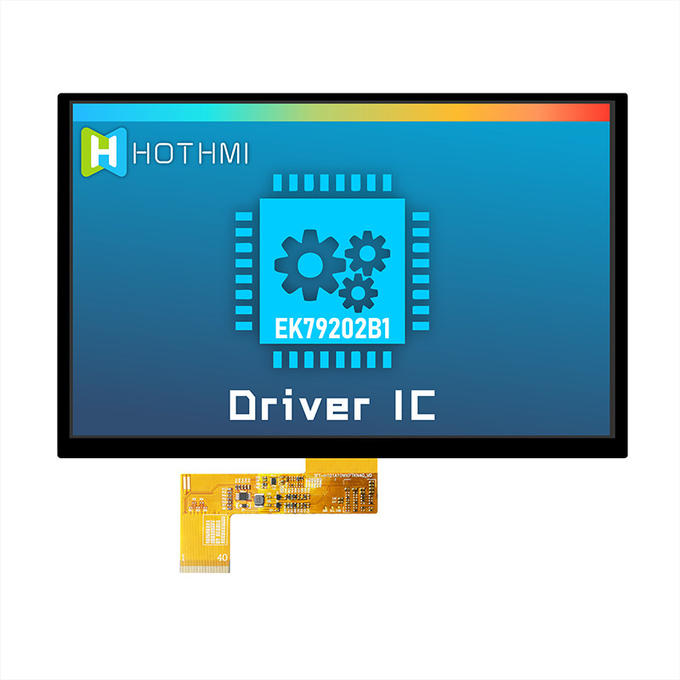

驱动芯片：EK79202B1

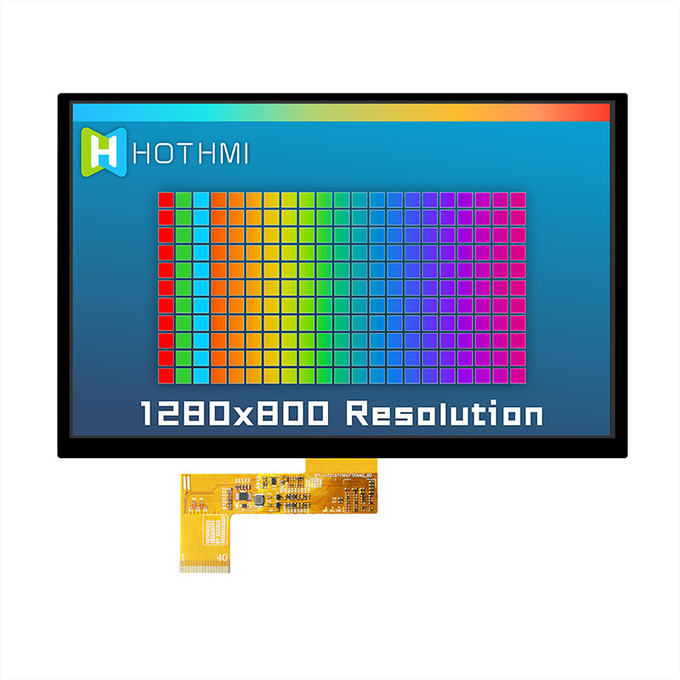

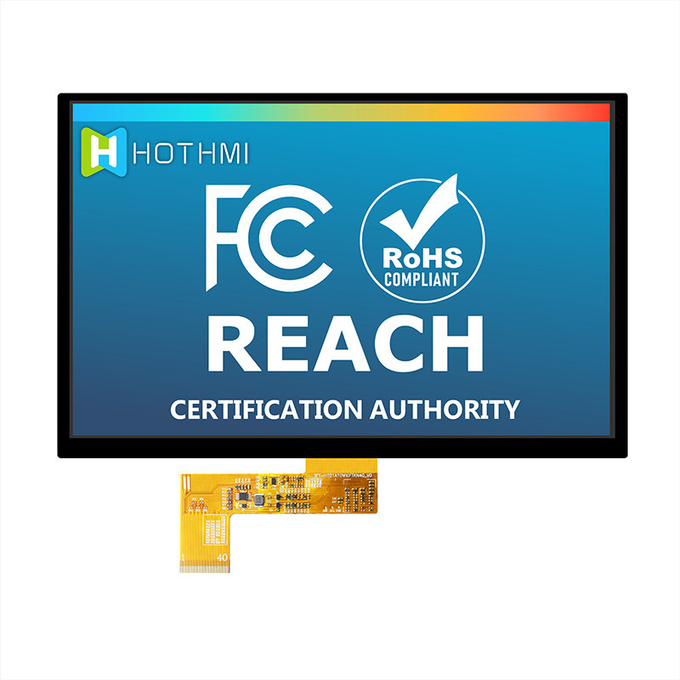

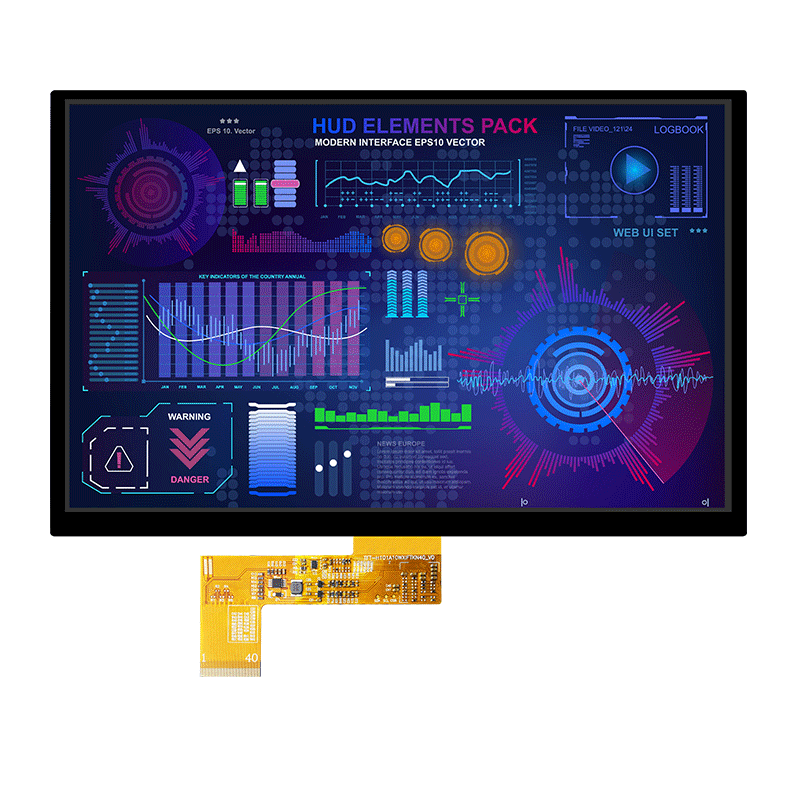

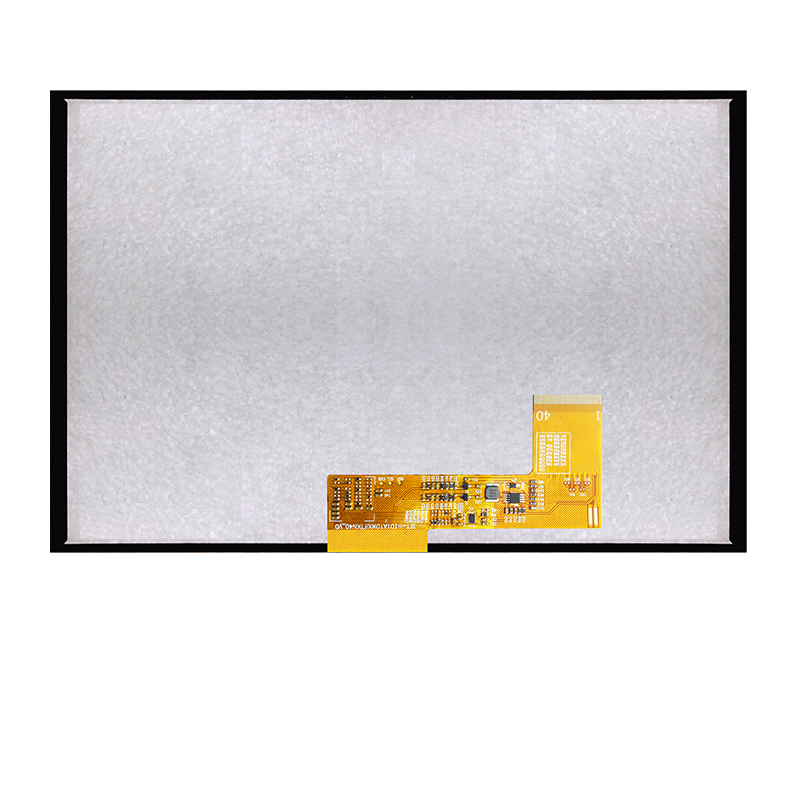

这款 1280X800 阳光下可读 TFT 配备了强大的背光，可在包括直射阳光在内的明亮照明条件下提供可视性。 24 位 LCD 显示屏，带 LVDS 接口和全视角。 此 LCD 显示器符合 RoHS 标准.

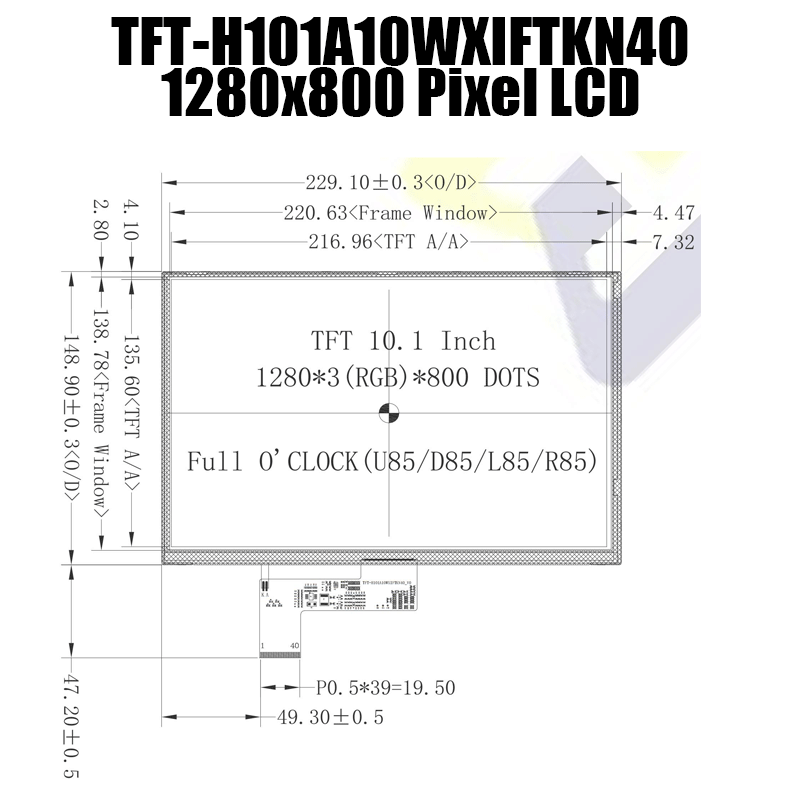

General Feature
Item | Standard Value | Unit | ||
Display Size | 10.1 | Inch | ||
Number of Pixels | 1280(H)*3(RGB)* 800(V) | dots | ||
Active Area | 216.96(H)* 135.60(V) | mm | ||
Outline Dimension | 229.10(H) * 148.90(V) * 4.35(D) | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | LVDS | - | ||
Driver IC | EK79202B1 | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3V | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | NC | Don't connect |
| 2~3 | VCI | Digital Power |
| 4 | NC | Don't connect |
| 5 | RESX | TFT Reset Pin.low in reset state |
| 6 | STBYB | Standby mode mode control. STBYB = ″VCI″normal operation;STBYB = ″GND″Standby mod |
| 7 | GND | Ground |
| 8 | D0N | LVDS data input pins |
| 9 | D0P | LVDS data input pins |
| 10 | GND | Ground |
| 11 | D1N | LVDS data input pins |
| 12 | D1P | LVDS data input pins |
| 13 | GND | Ground |
| 14 | D2N | LVDS data input pins |
| 15 | D2P | LVDS data input pins |
| 16 | GND | Ground |
| 17 | DCKN | LVDS clock input pins. |
| 18 | DCKP | LVDS clock input pins. |
| 19 | GND | Ground |
| 20 | D3N | LVDS data input pins |
| 21 | D3P | LVDS data input pins |
| 22 | GND | Ground |
| 23~24 | NC | Don't connect |
| 25 | GND | Ground |
| 26~27 | NC | Don't connect |
| 28 | HSD | 18-bit / 24-bit input select. HSD=″VCI″ 24 bit ; HSD=″GND″ 18 bit |
| 29 | NC | Don't connect |
| 30 | GND | Ground |
| 31~32 | LEDK | LED Cathode |
| 33~38 | NC | Don't connect |
| 39~40 | LEDA | LED Anode |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |

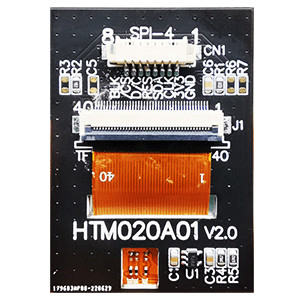

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

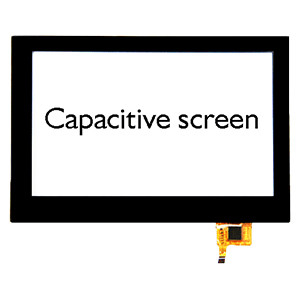

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

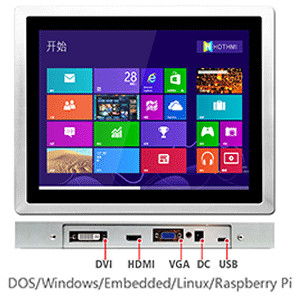

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
