  • 型号: 4.0寸长条形TFT 400x960分辨率 IPS全视角 高亮度 宽温 TFT-H040A13ZDIST6N20

    类型:TFT竖屏

    显示像素:400x960

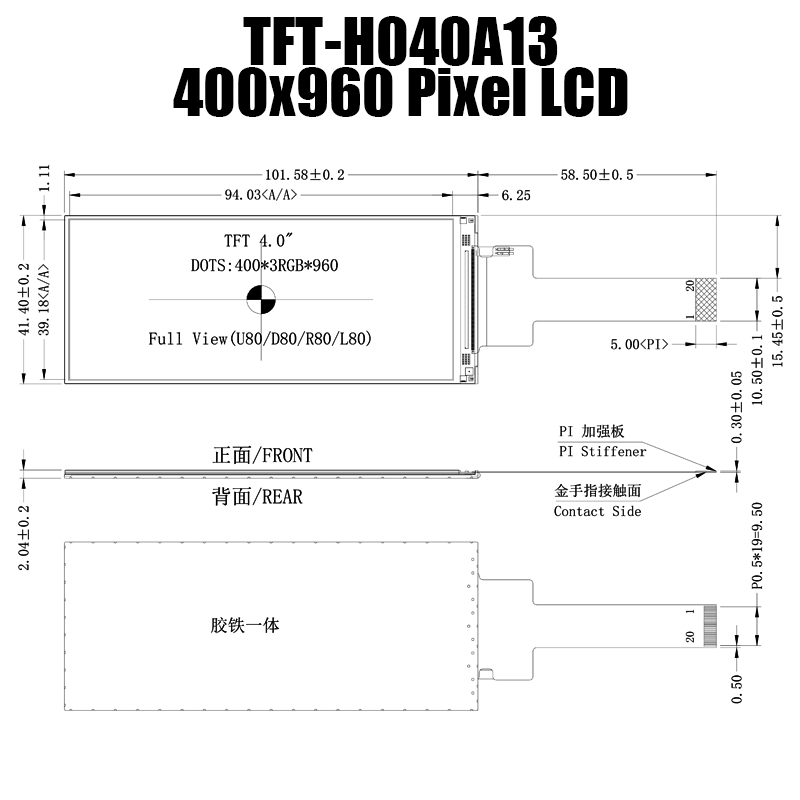

    外形尺寸(mm) :101.58×41.40×2.04

    VA尺寸(mm):4.0

    AA尺寸(mm) :4.0

    有效尺寸mm:94.03x39.18

    应用:仪器仪表

    视角:全视角

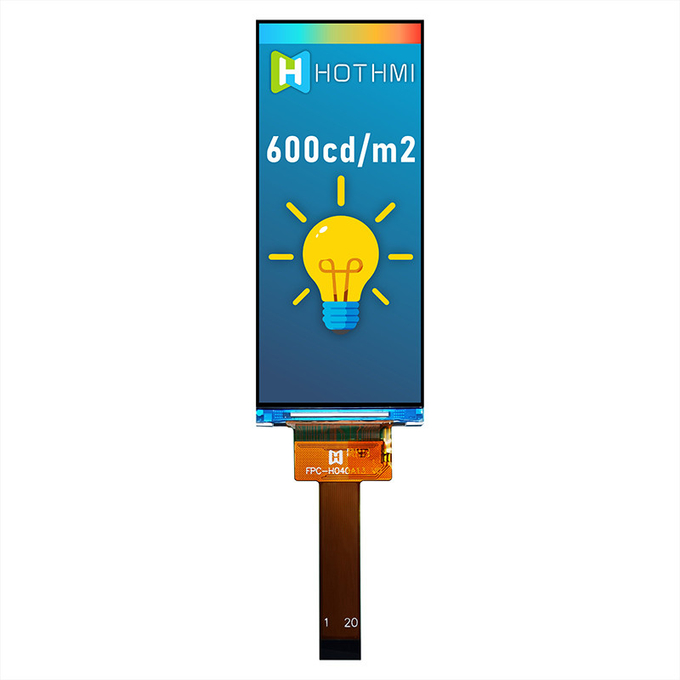

    背光/亮度:600cd/m2

    引脚:20pin

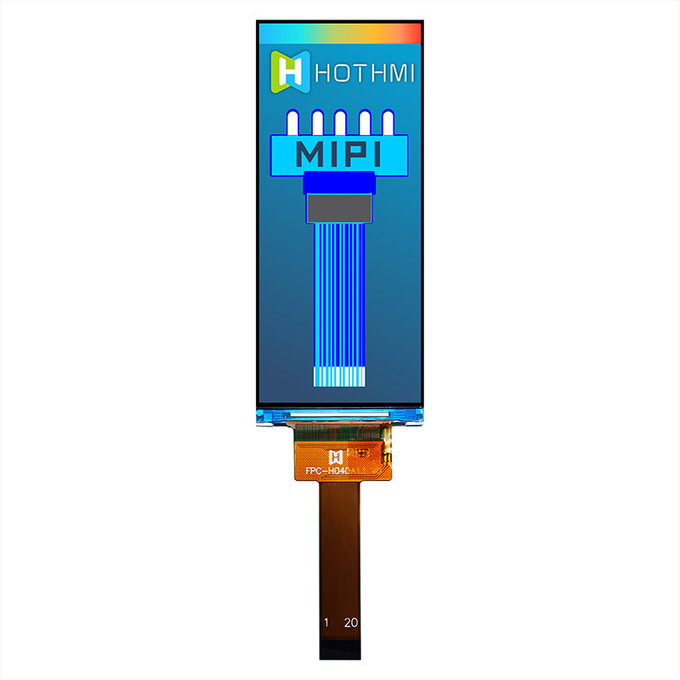

    接口方式:MIPI

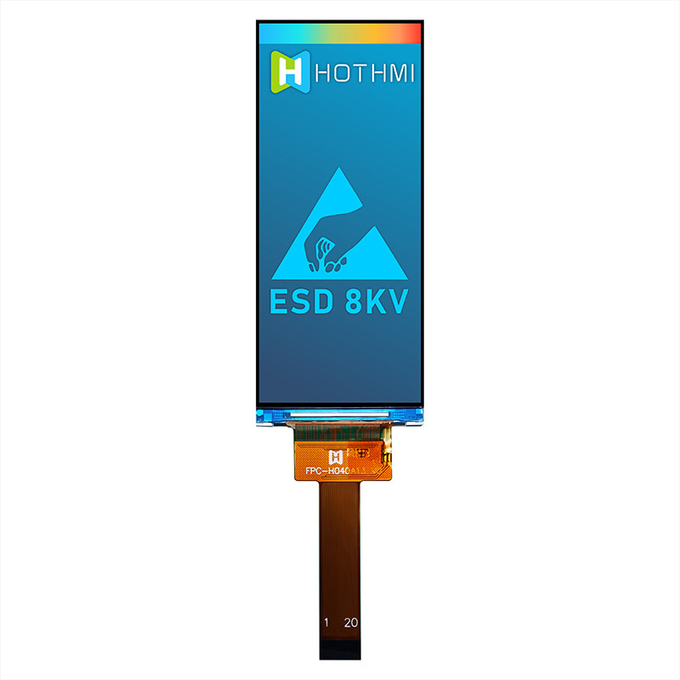

    特殊说明:抗静电ESD 8KV

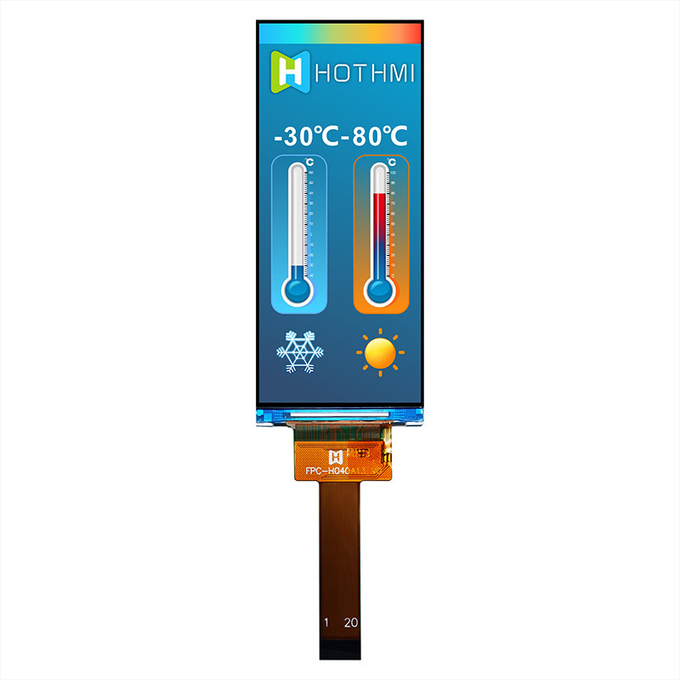

    工作温度:-30~80℃

    供电电压:3.3V

    驱动芯片:ST7701S

产品叙述

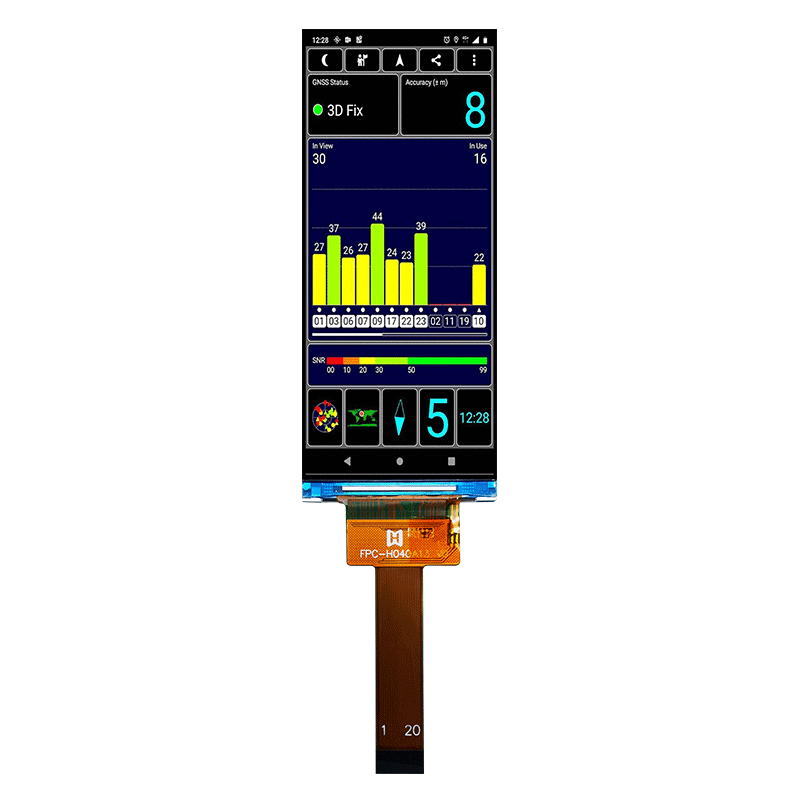

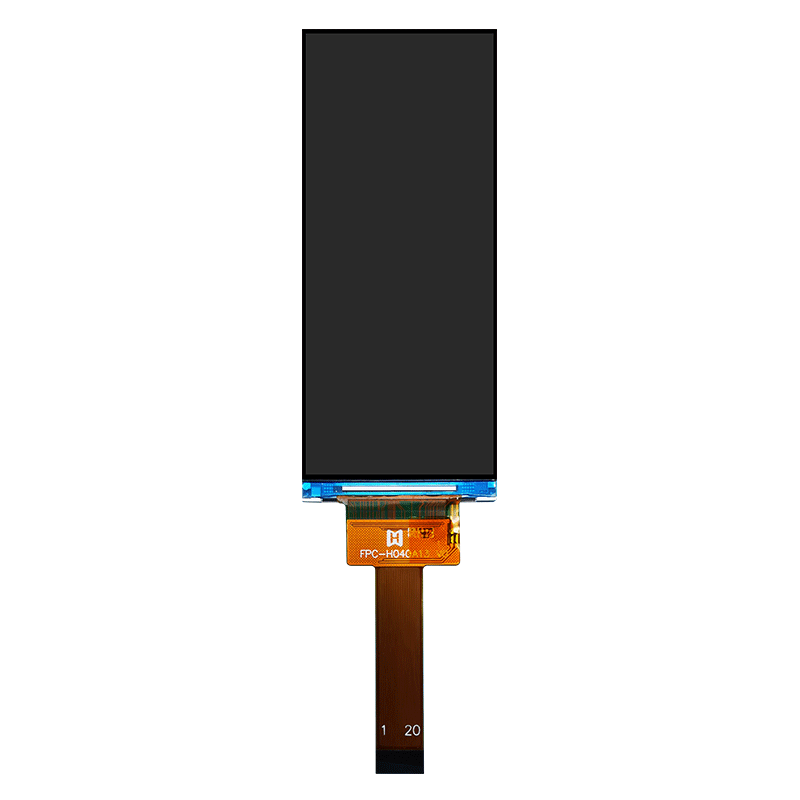

4.0寸长条形TFT 400x960分辨率 IPS全视角 高亮度 宽温 TFT-H040A13ZDIST6N20



TFT-H040A13ZDIST6N20 | 4.0" IPS液晶显示屏 | TFT液晶显示屏制造商 | 400x960分辨率 | -30℃~80℃ | 可用于仪器仪表 | 阳光可读 | 宽温度范围



这款4.0英寸IPS液晶显示屏是一款专门设计用于户外仪器仪表的高性能显示器。它具有高分辨率的400x960像素,保证了清晰、生动的图像展示效果。此外,该显示屏还具备出色的阳光可读性能,让您在强烈日光下也能轻松查看信息。作为一款TFT液晶显示屏制造商的产品,我们的TFT-H040A13ZDIST6N20采用高品质材料和先进工艺,确保了其长寿命和高可靠性。宽广的工作温度范围(-30℃~80℃)意味着它可以在恶劣的环境条件下正常工作,从而满足各种户外应用场景的需求。如果您需要一款可靠、高效、易于集成的液晶显示屏来应用于户外仪器仪表等场景,TFT-H040A13ZDIST6N20将是您的理想选择。请联系我们获取更多信息。


General Feature



Item

Standard Value

Unit

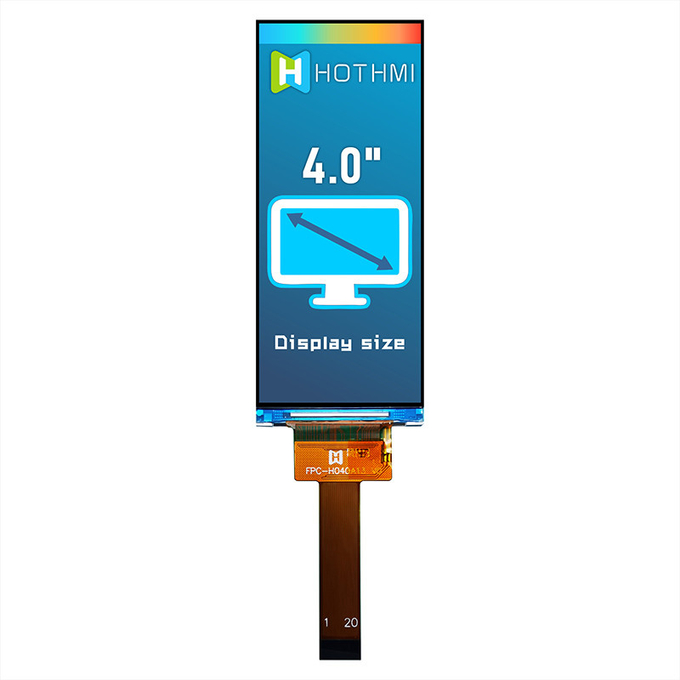

Display Size

4.0

Inch

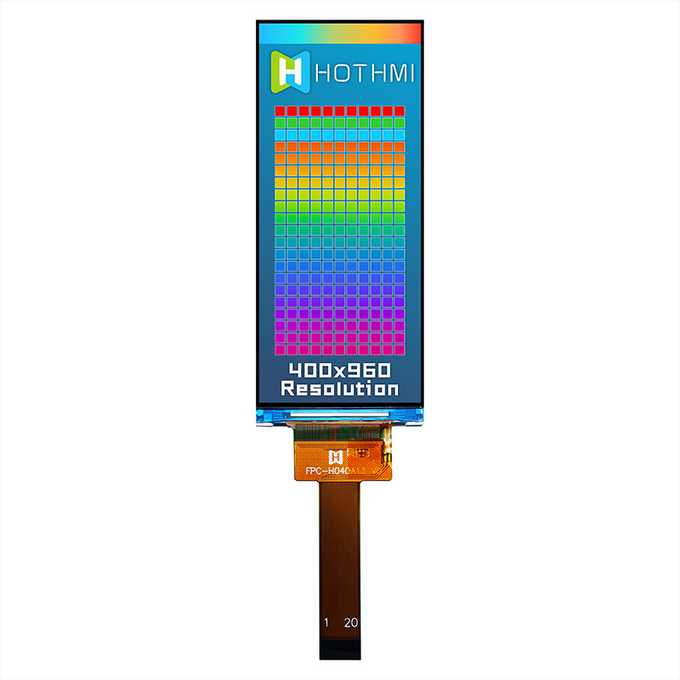

Number of Pixels

400(H)*3(RGB)* 960(V)

dots

Active Area

94.03x39.18mm

mm

Outline Dimension

101.58×41.40×2.04

mm

Viewing Direction

FULL O'clock

-

Interface

MIPI 4L

-

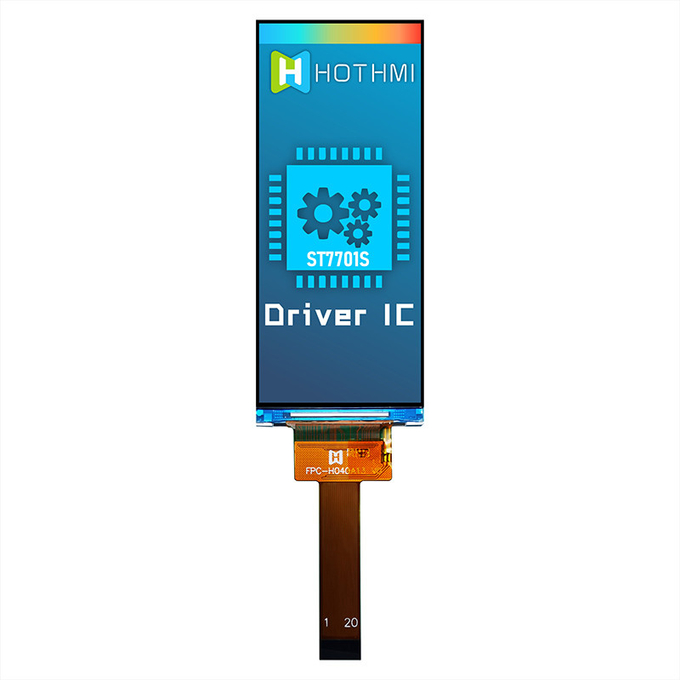

Driver IC

ST7701S

-

Driver Condition

VCI=3.3V(Typ)

V

Backlight

-

-

Touch Panel

WHITOUT TOUCH


CTP Driver IC

--

Driver Condition

VDD=3.3

V

TFT Operation AT

-30 ~ +80

TFT Storage AT

-30 ~ +80





All Products



  Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.



Search keyword: tft 4.0, tft 4.0", 4.0 tft lcd, 4.0" tft lcd, 4.0 inch tft lcd, tft lcd 4.0, 4.0 tft display, 4.0" tft display,4.0 inch tft display, tft display 4.0, tft display 4.0"

4 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 04 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 14 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 24 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 34 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 44 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 54 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 64 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 74 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 8



TFT Custom Solutions

4 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 9

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


4 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 10

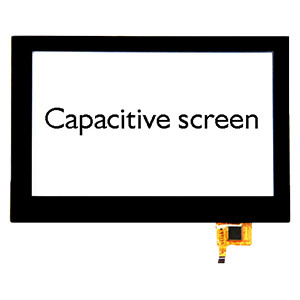

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


4 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 11

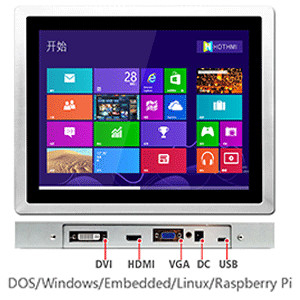

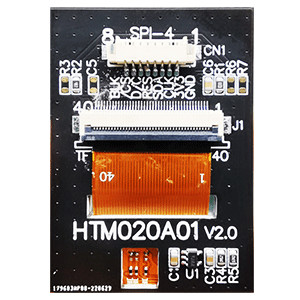

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.




4 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 12

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.



4 Inch TFT LCD Module 400X960 TFT LCD Display Manufacturer For Fingerprint Lock 13



TFT-H040A13ZDIST6N20_v0.pdf
