类型：TFT竖屏
显示像素：320x480
外形尺寸(mm) ：60.88x94.57x2.3
VA尺寸(mm)：4.0
AA尺寸(mm) ：4.0
有效尺寸mm：55.68x83.52
应用：手持设备
视角：IPS全视角
背光/亮度：500cd/m2
引脚：FPC-40PIN
接口方式：SPI-4L
特殊说明：抗静电ESD 8KV
工作温度：-30~80℃
供电电压：3.3V
驱动芯片：ST7365

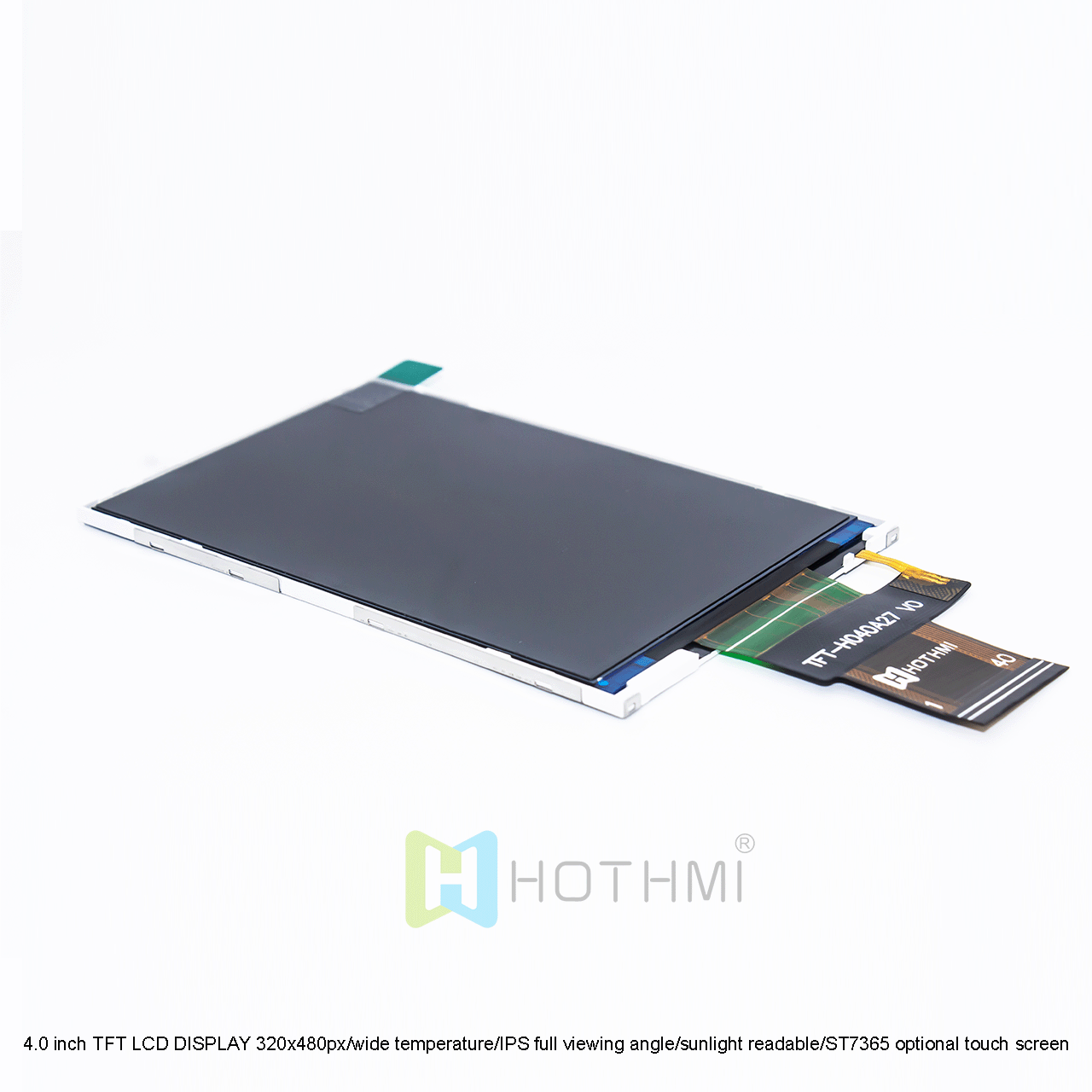

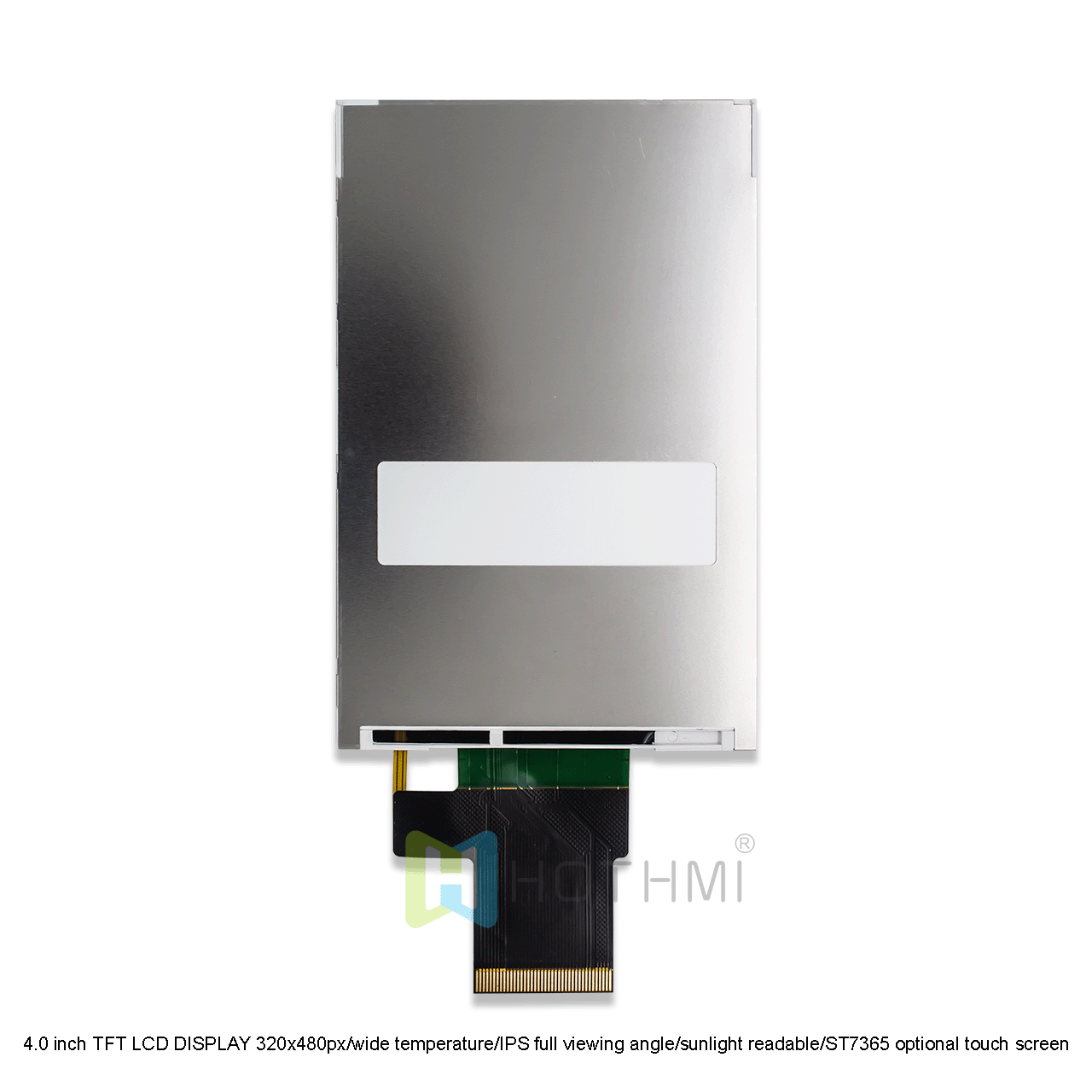

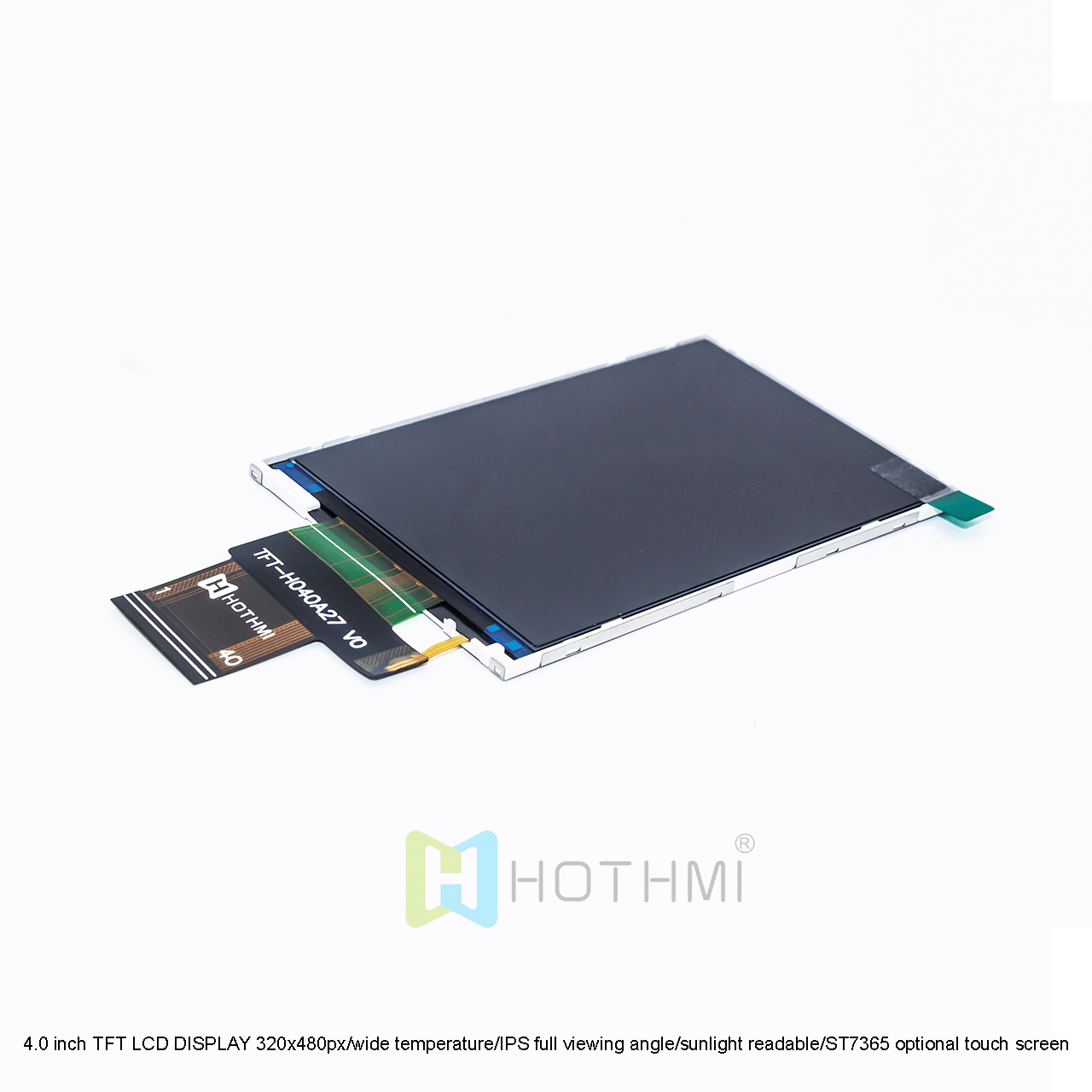

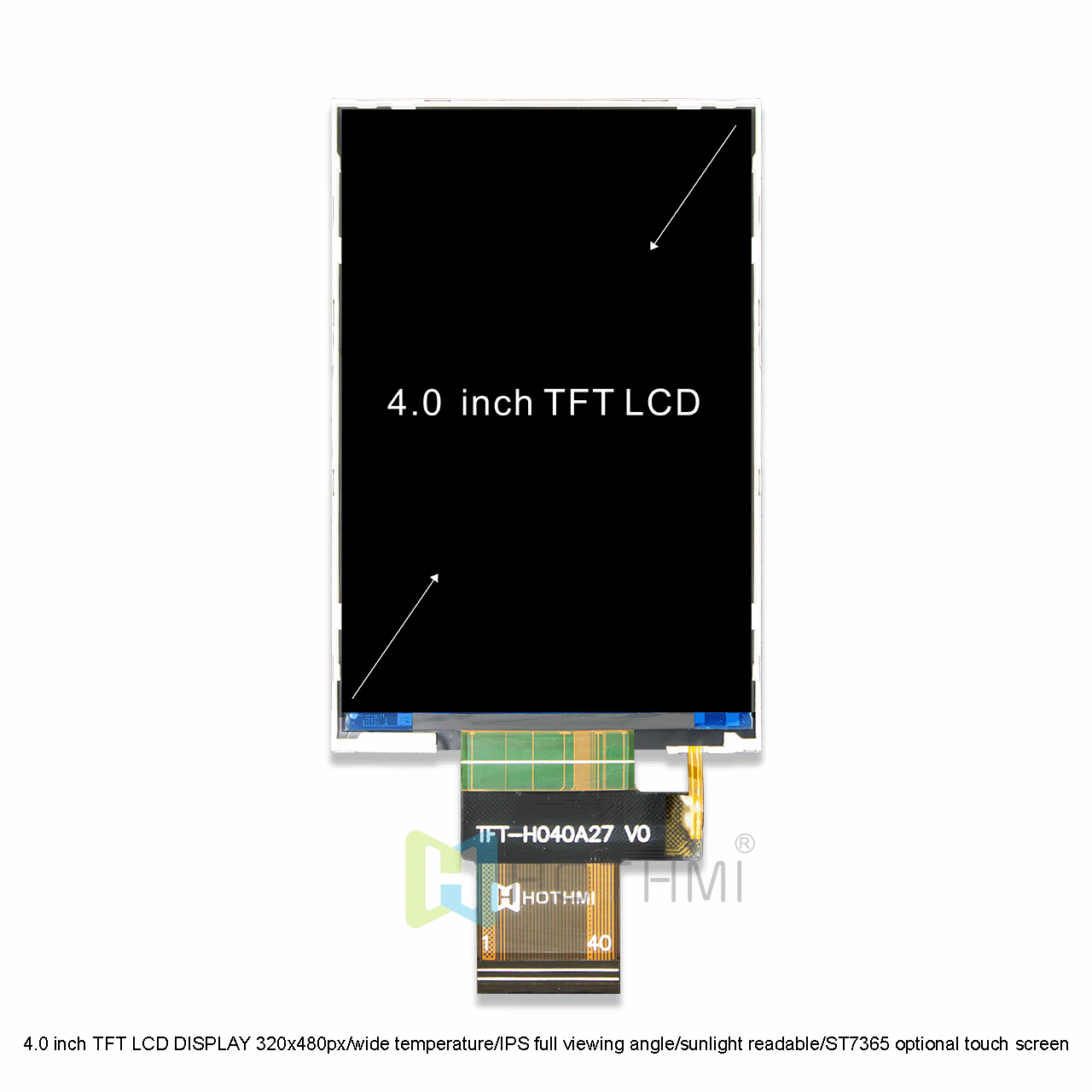

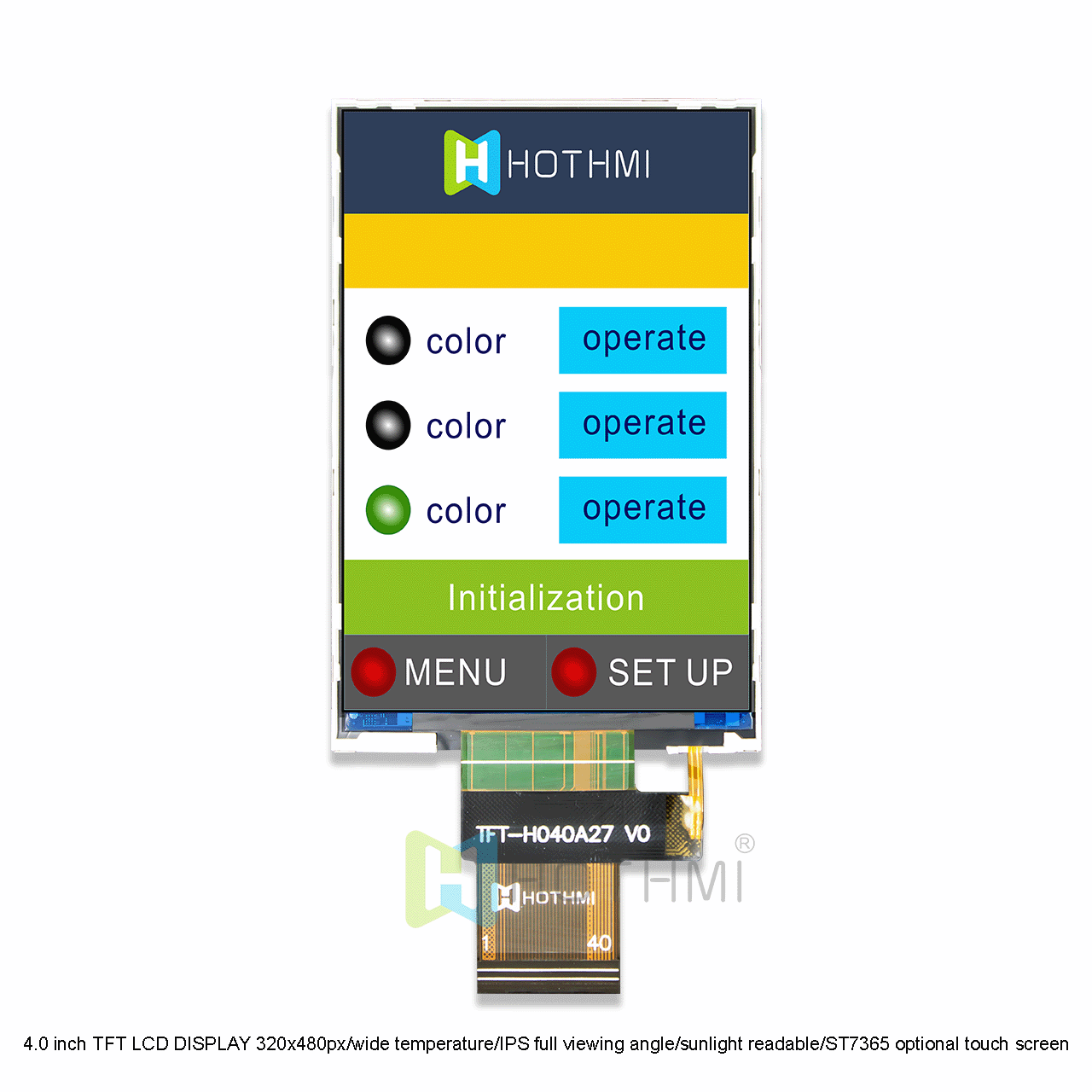

TFT-H040A27FWIST5N40 is a 4.0-inch color LCD module with a 320x480 resolution, built-in ST7365 controller, optional touch screen, and high image quality, IPS wide viewing angle, supporting 8080 8-bit, 9-bit, 16 bit, 18 bit parallel interfaces and 3-wire, 4-wire serial interfaces, 65K/262K true color, FPC connection (optional connector), 2.8V~3.3 voltage, supports vertical display. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other microcontroller development platforms.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris. |
