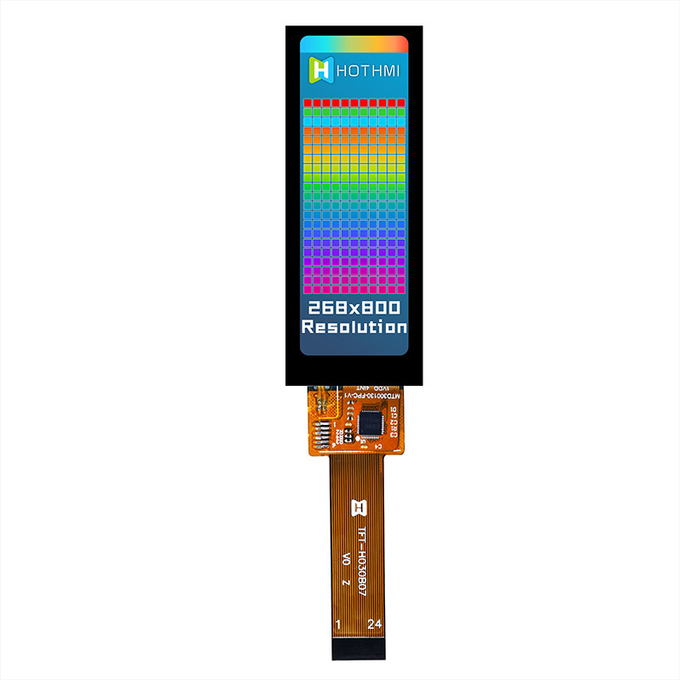

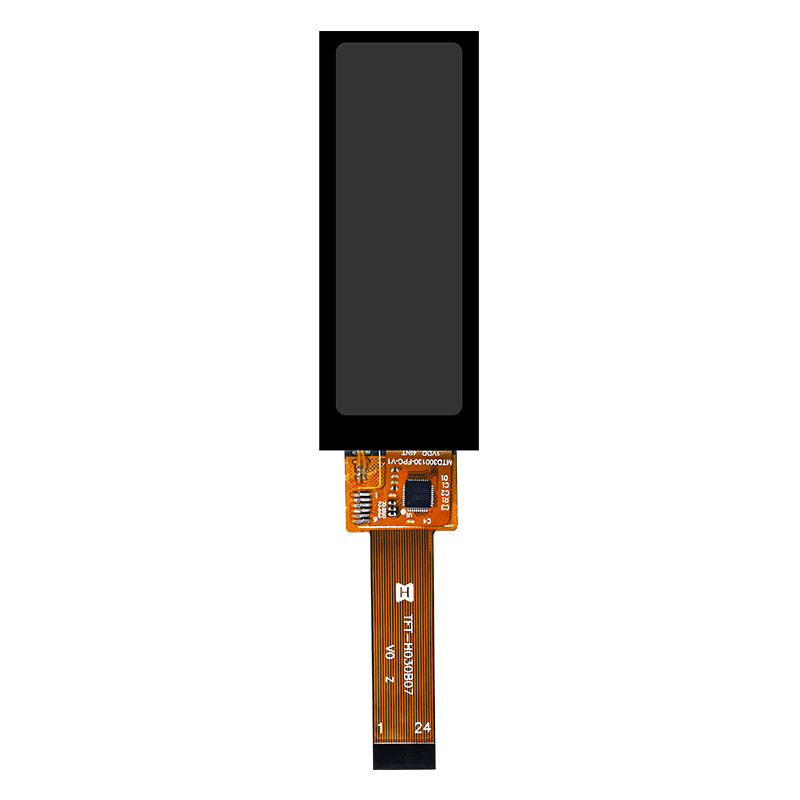

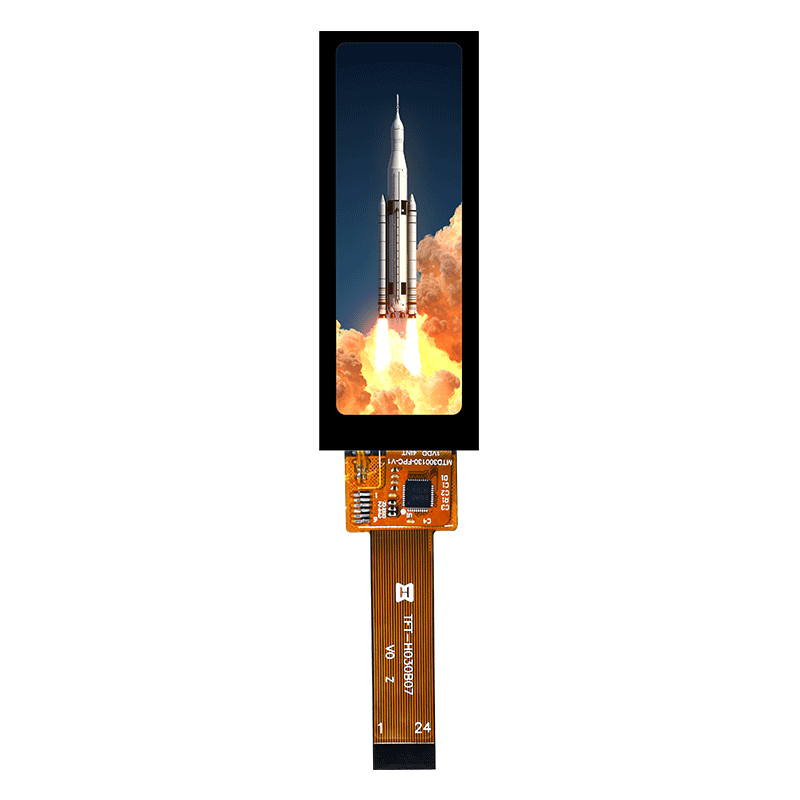

类型：TFT竖屏
显示像素：268x800
外形尺寸(mm) ：31.00x81.35x3.05
VA尺寸(mm)：3.0
AA尺寸(mm) ：3.0
有效尺寸mm：24.12x72.00mm
应用：手持设备

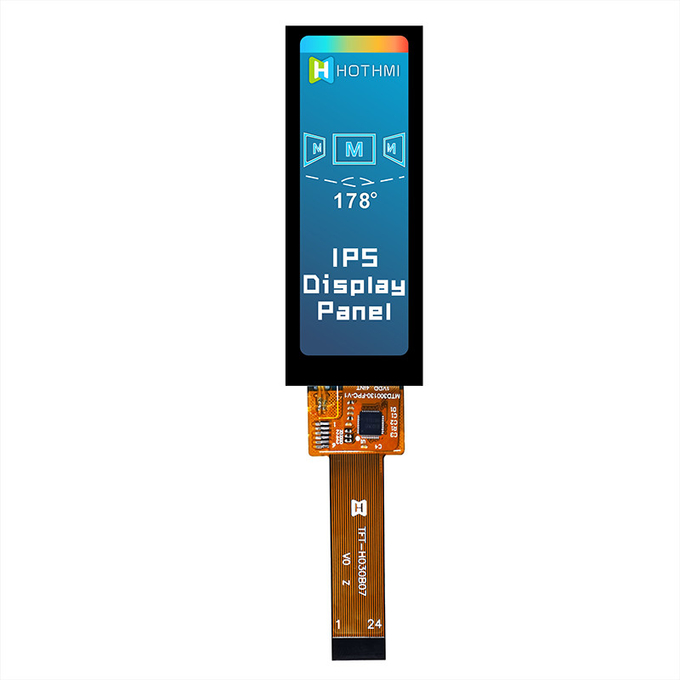

视角：全视角
背光/亮度：800cd/m2

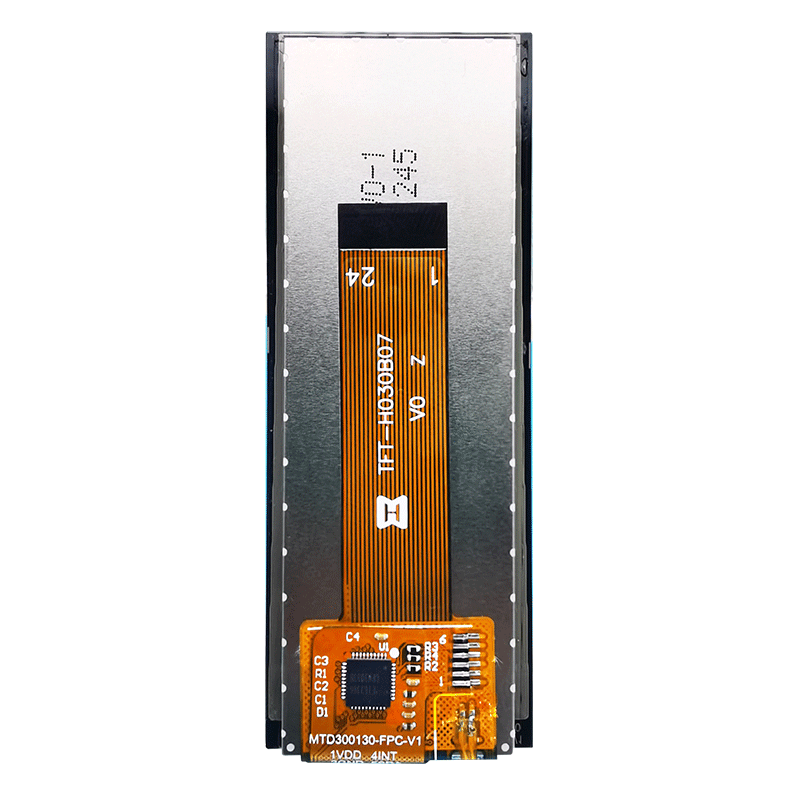

引脚：24pin

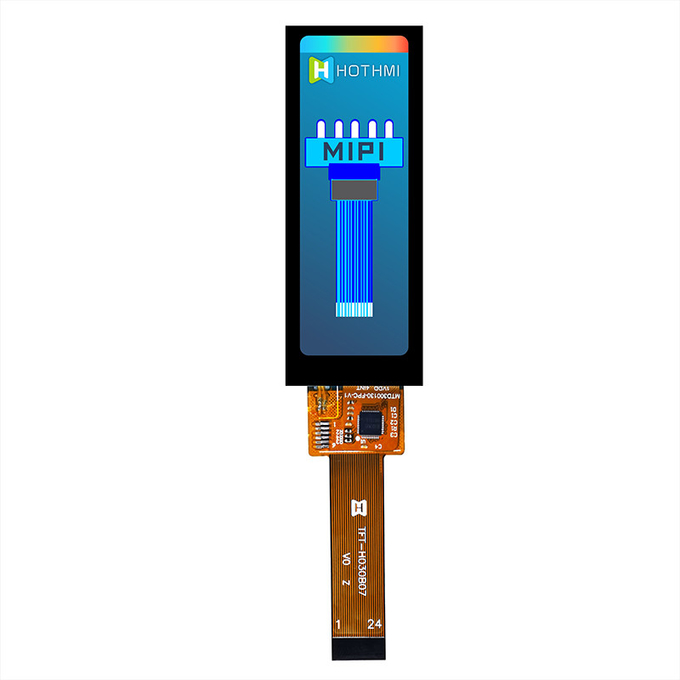

接口方式：MIPI

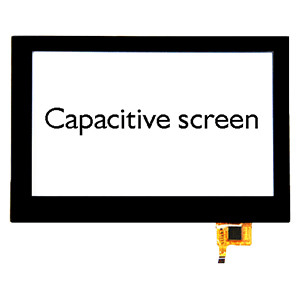

特殊说明：带电容触控功能

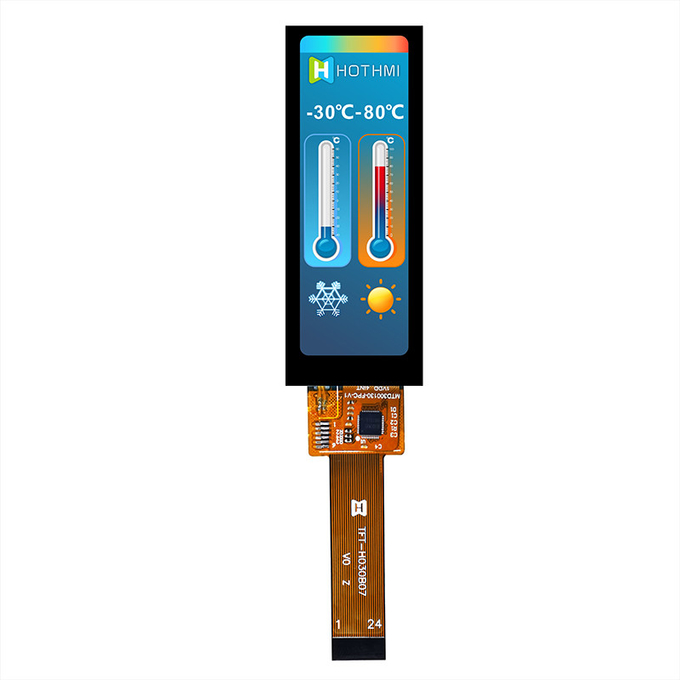

工作温度：-30~80℃
供电电压：3.3V

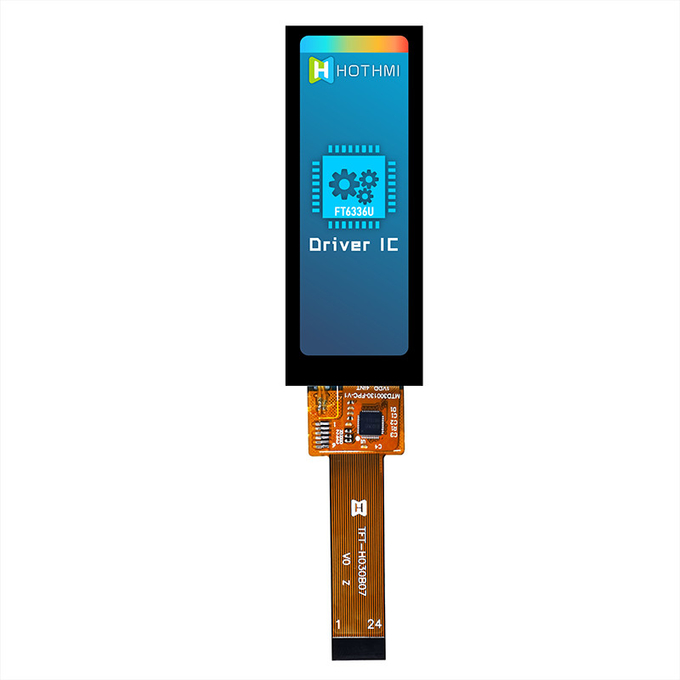

驱动芯片：FT6336U

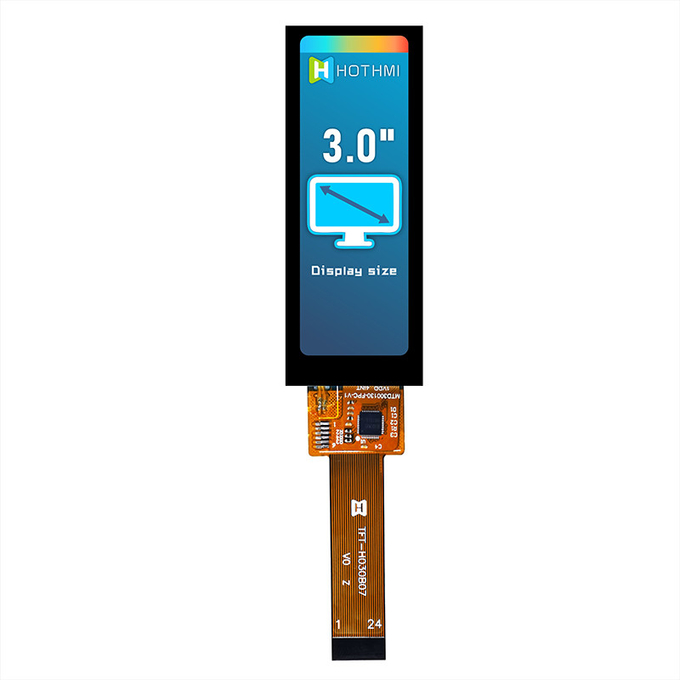

该显示器采用 3.0 英寸 IPS LCD 技术，分辨率为 268x800 像素，显示清晰。 触摸屏采用电容触摸技术，操作灵敏，反应迅速。 无论是在移动设备还是嵌入式系统中，这款显示器都能提供出色的视觉体验，为用户带来高品质的交互体验。 此外，这款显示器还拥有出色的可视角度，即使在不同角度下也能保持清晰的显示效果，无论是在室内还是室外使用，都能提供舒适的观看体验。 同时，其紧凑的尺寸和轻巧的重量使其非常适合在从便携式设备到工业控制系统的各种应用中使用，并能表现出色。 最后，这款显示屏的优质材料和严谨的制造工艺保证了其稳定性和可靠性，为您的应用提供长期可靠的支持。 值得一提的是，这款显示器的IPS技术具有低功耗、高亮度的特点，可以满足不同应用对显示效果和功耗的需求，同时保证良好的显示效果和续航。 此外，与传统的电阻式触摸技术相比，电容式触摸技术具有更高的灵敏度和更自然的交互方式，使用户的操作更加流畅和舒适。 总之，这款显示器集成了多种优秀的技术和特性，为您的应用提供优质的显示和交互体验。
General information
| Item | Specification | Unit | |

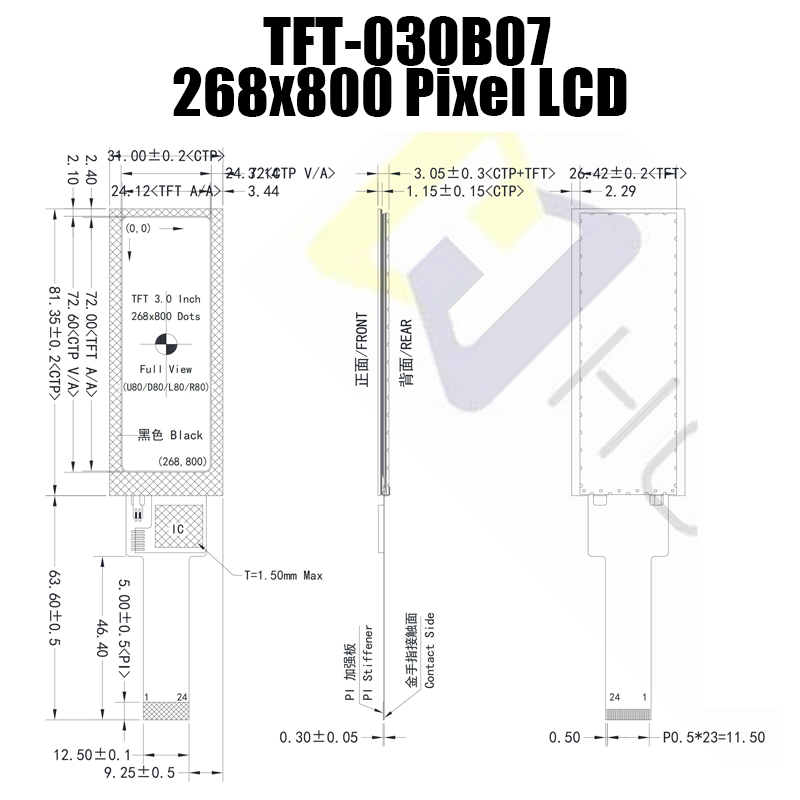

| Outline Dimension | 31.00x81.35x3.05mm | mm | |
| Display area | 24.12x72.00mm | mm | |
| Number of Pixel | 268(H) x 800(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | 450 | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | ST7701 | W |
| B/L System | - | W | |
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | CTP-SCL | CTP I IC CTP IIC clock signal |
| 2 | CTP-SDA | CTP I IC CTP IIC data signal |
| 3 | CTP- INT | CTP CTP Interrupt signal |
| 4 | CTP-RES | CTP CTP System reset |
| 5 | CTP-VDD | CTP CTP Power supply |
| 6 | NC | Not connected |
| 7 | LEDK |
LED cathode |
| 8 | NC | Not connected |
| 9 | LEDA | LED anode |
| 10 | NC | Not connected |
| 11 | VCI | Power supply |
| 12 | IOVCC | I/O Power supply |
| 13 | RESX | Reset pin |
| 14 | GND | Power supply ground |
| 15 | D1P | MIPI Positive data signal (+) |
| 16 | D1N | MIPI Negative data signal (-) |
| 17 | GND | Power supply ground |
| 18 | DCKP | MIPI Positive clock signal (+) |
| 19 | DCKN | MIPI Negative clock signal (-) |
| 20 | GND | Power supply ground |
| 21 | D0P | MIPI Positive data signal (+) |
| 22 | D0N | MIPI Negative data signal (-) |
| 23 ~ 24 | GND | Power supply ground |
