类型：TFT带板模块

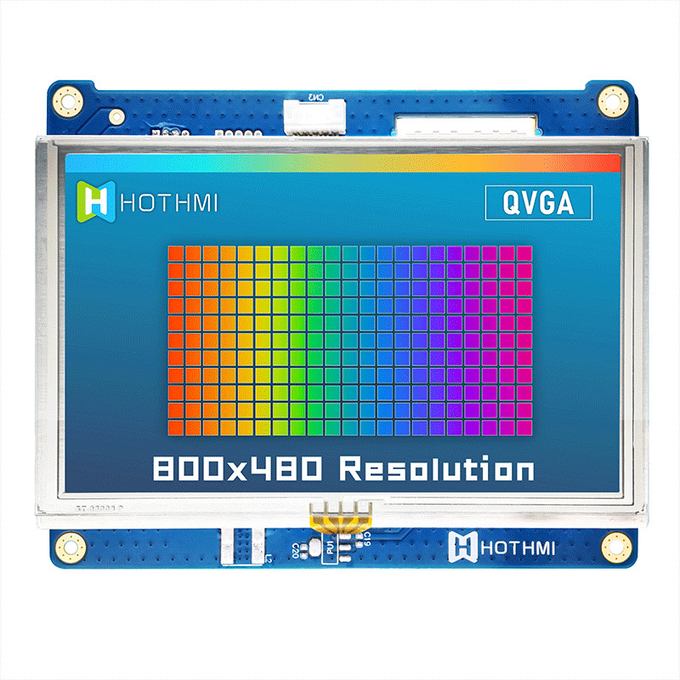

显示像素：800x480

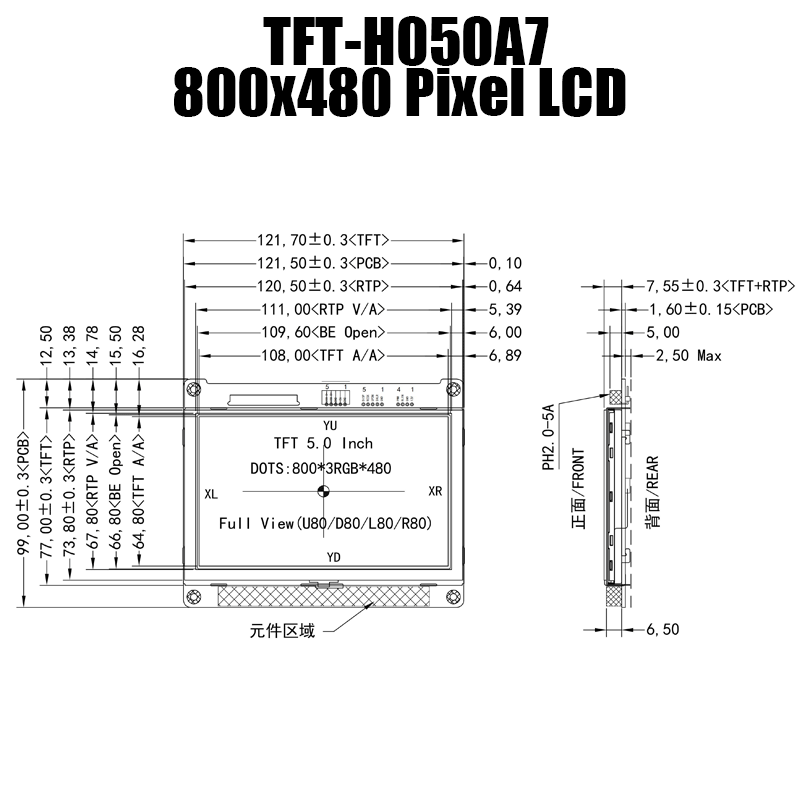

外形尺寸(mm) ：121.7x99x7.55mm
VA尺寸(mm)：5.0
AA尺寸(mm) ：5.0
有效尺寸mm：108x64.8mm
应用：车载，医疗，工控
视角：全视角
背光/亮度：1000cd/m2
引脚：20pin

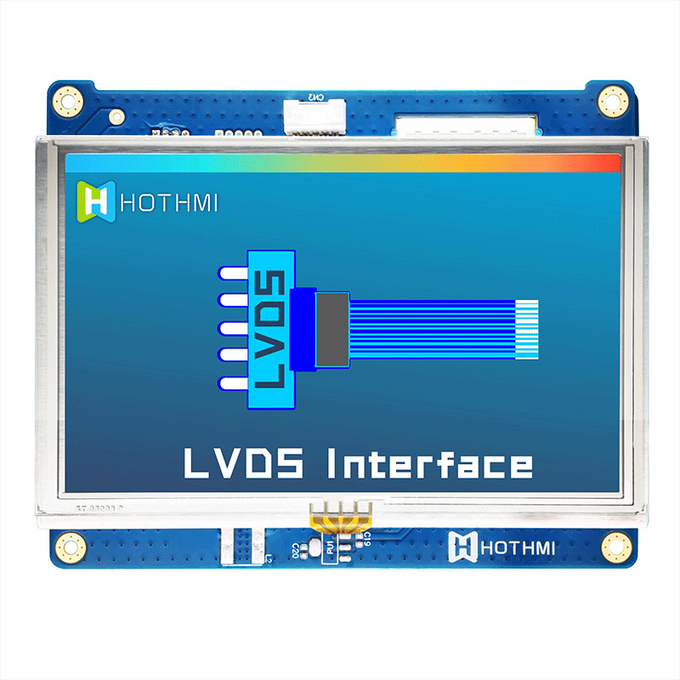

接口方式：LVDS

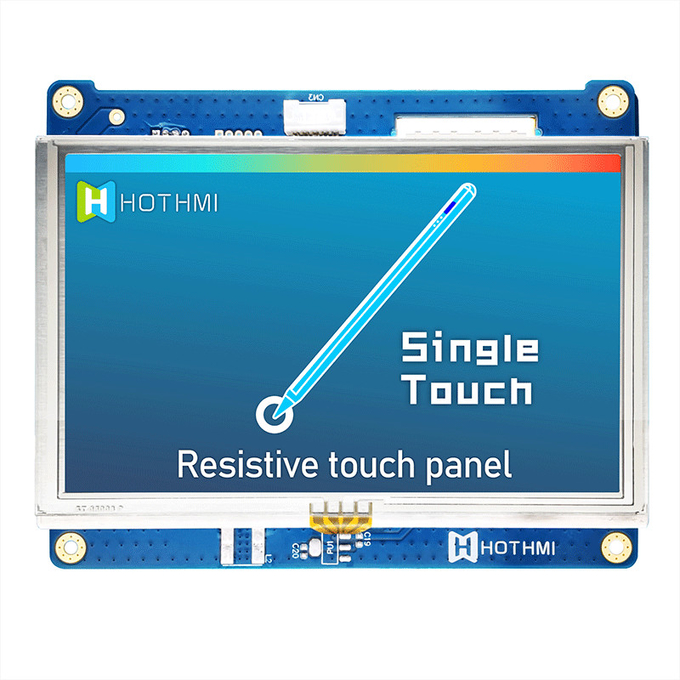

特殊说明：带电阻触控功能

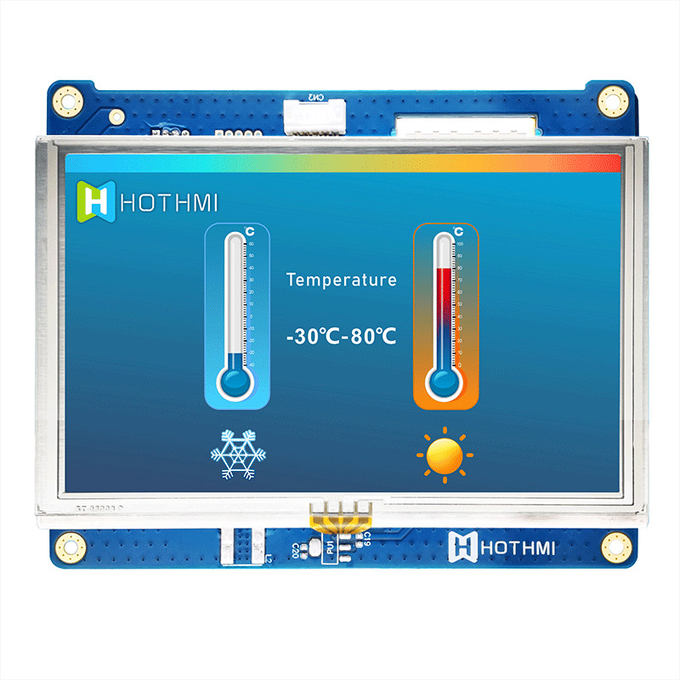

工作温度：-30~80℃
供电电压：3.3V
驱动芯片：ST7262

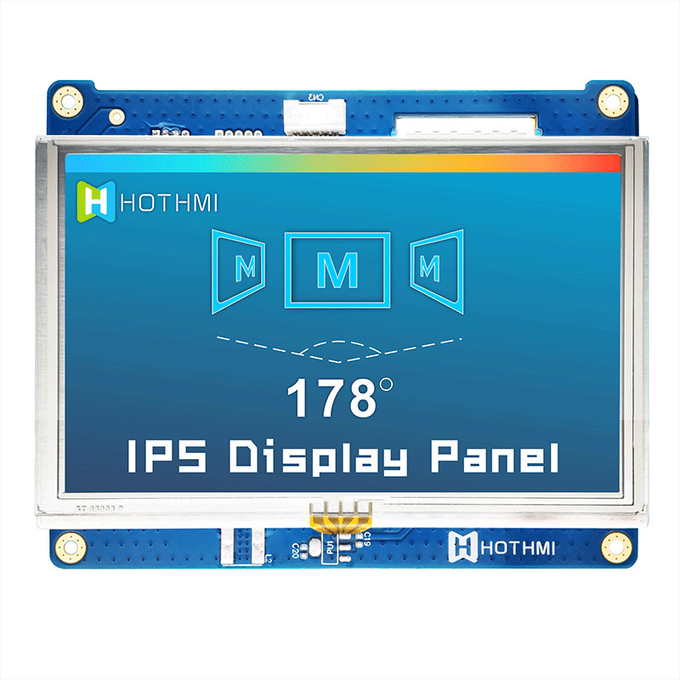

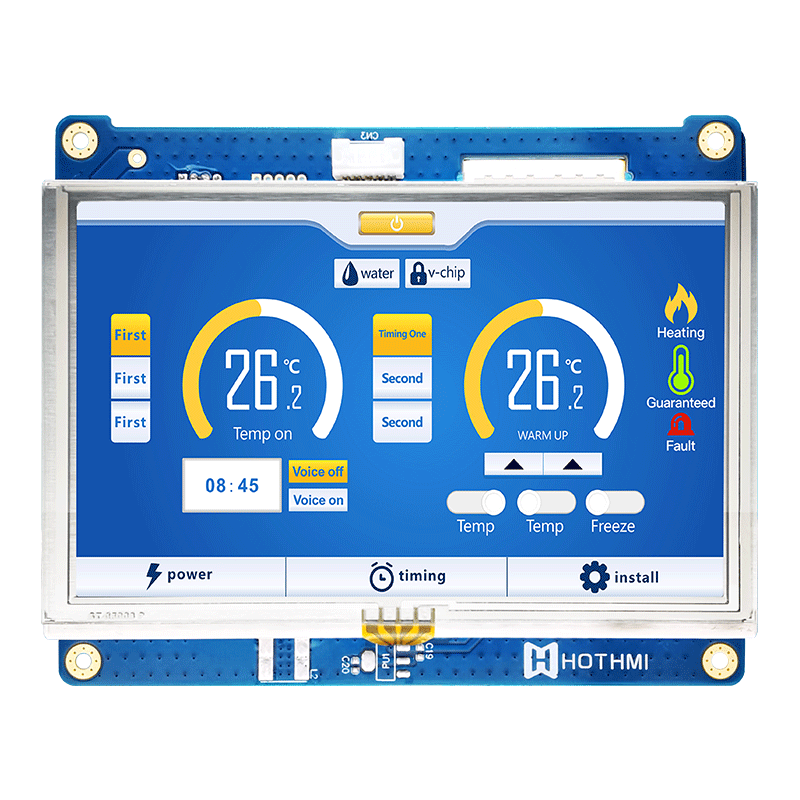

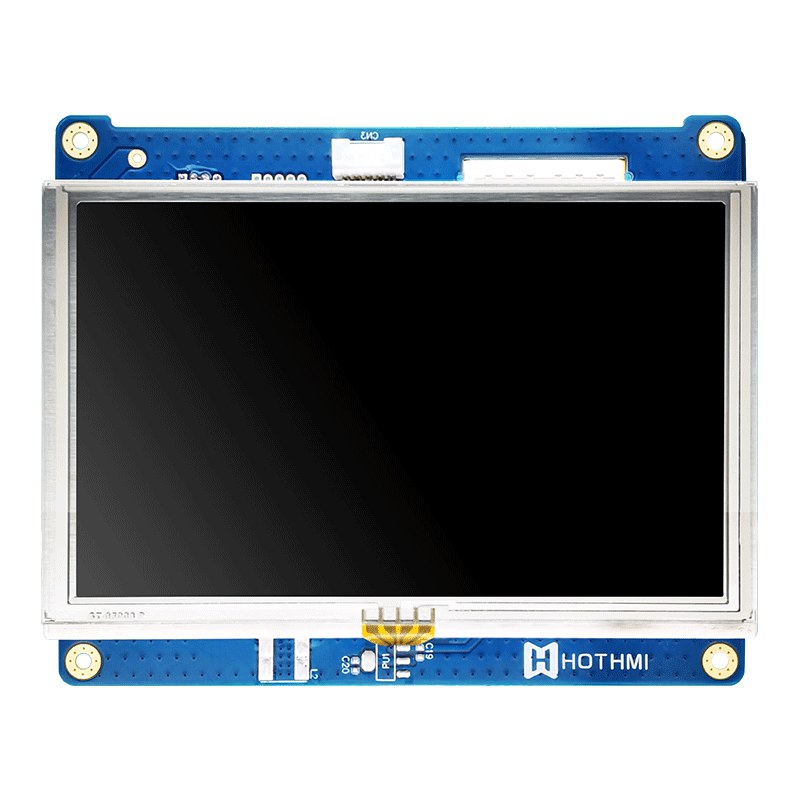

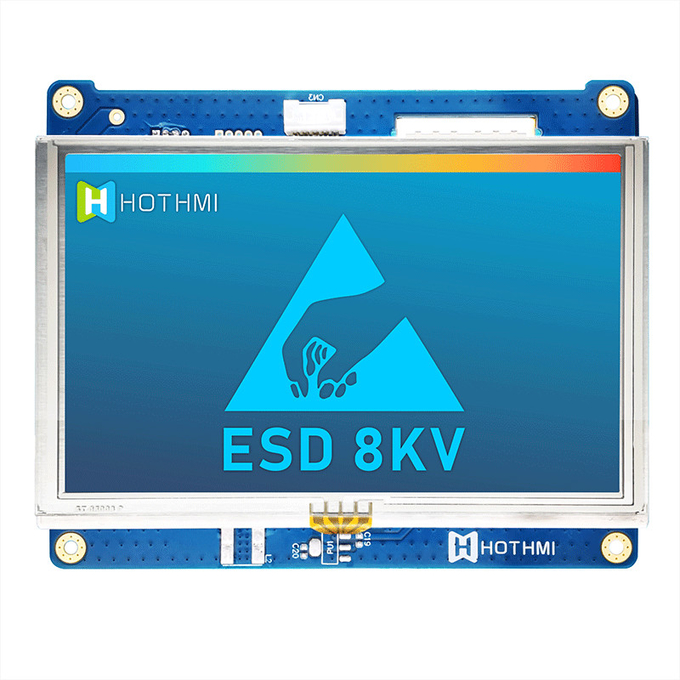

隆重推出 HTM-H050A7-LVDS-USBRTP，这是一款优质的 5.0 英寸 IPS LCD 显示屏，拥有令人印象深刻的 800x480 像素分辨率。 凭借其电阻式触摸屏，该显示器反应灵敏且易于使用，使其成为广泛应用的绝佳选择。
HTM-H050A7-LVDS-USBRTP 的突出特点之一是其宽温度范围，这使其非常适合在其他显示器可能出现故障的恶劣环境中使用。 凭借其先进的技术，这款显示器可以承受极端温度，即使在最恶劣的条件下也能确保可靠的性能。
无论您是在寻找用于医疗设备、工业设备或任何其他性能和可靠性至关重要的应用的显示器，HTM-H050A7-LVDS-USBRTP 都是完美的选择。 凭借其高品质的结构和先进的功能，这款显示器一定能满足您的所有需求并超越您的期望。
除了令人印象深刻的功能外，HTM-H050A7-LVDS-USBRTP 还易于安装和使用。 该显示器配备了一个用户友好的界面和一系列连接选项，包括 LVDS 和 USB。 这意味着您可以轻松地将显示器连接到各种设备并立即开始使用。
HTM-H050A7-LVDS-USBRTP 还具有高度通用性，使其成为广泛应用的绝佳选择。 无论您是在医疗设备、工业设备还是任何其他类型的设备中使用它，这款显示器都能提供卓越的性能和可靠性。
凭借其先进的技术、高质量的结构和令人印象深刻的功能，HTM-H050A7-LVDS-USBRTP 是任何寻求高性能显示器的人的理想选择。 那为什么还要等？ 立即订购，亲身体验与众不同！
General information
| Item | Specification | Unit | |
| Outline Dimension | 121.7x99x7.55mm | mm | |
| Display area | 108x64.8mm | mm | |
| Number of Pixel | 800(H) x 480(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | ST7262 | W |
| B/L System | - | W | |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

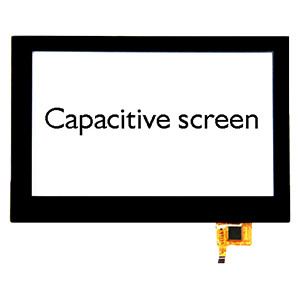

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
HTM-H050A7-LVDS-USBRTP_V0-0(1).pdf
